The J1939 Configurations follow the J1939 industry protocol used to monitor vehicle communication and diagnostic information.



Note: Must have HD5, J1939 cable attached to the vehicle.



From the Vehicle Groups window, click Manage J1939...

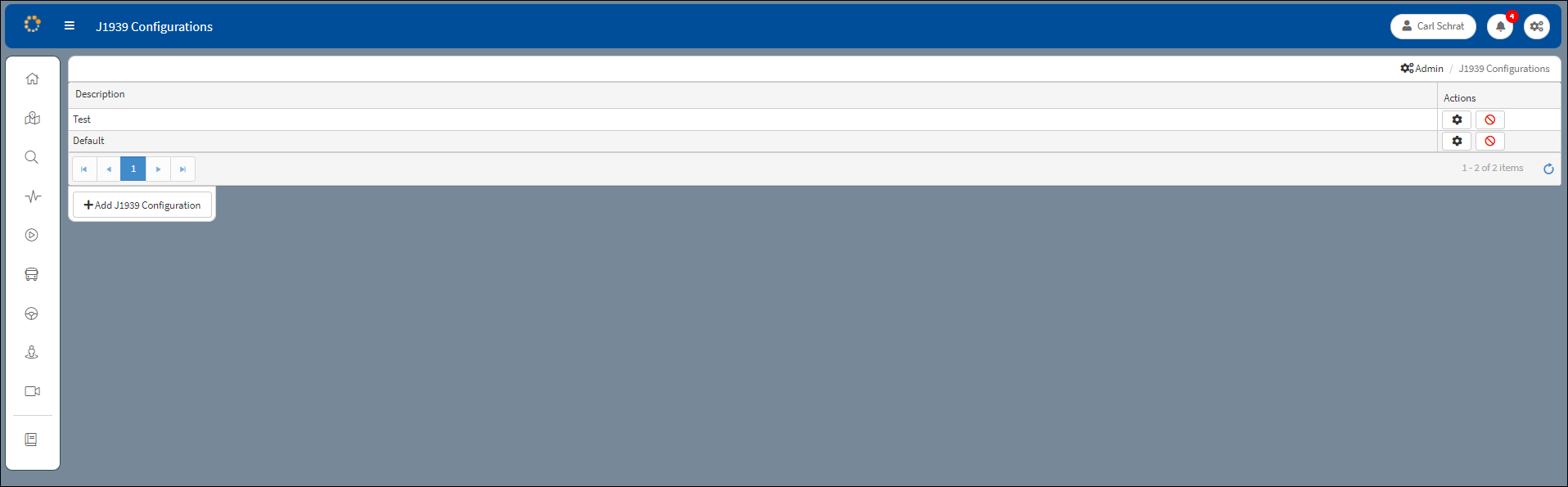

...to open the following screen used to create, edit, or remove a J1939 Configuration.





The screen consists of the following fields:



Description – Where the J1939 Configurations are identified and listed.



Actions – Where the user can either edit or delete a J1939 Configuration by clicking on the Edit or Delete icons.



Edit – Click to open an Edit Configuration window for a specific J1939 Configuration. The user can select and edit Descriptor values from a drop-down list for a specific J1939 Configuration description.

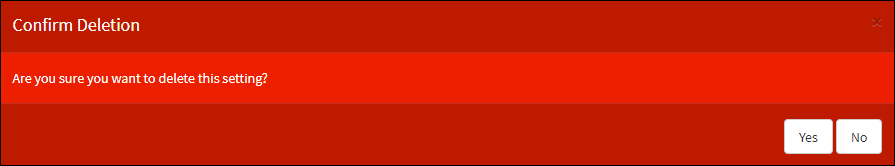

Delete – Click to clear the selected J1939 Configuration from the list. A confirmation message will appear asking to confirm the deletion. Click Yes to continue. Click No to cancel.

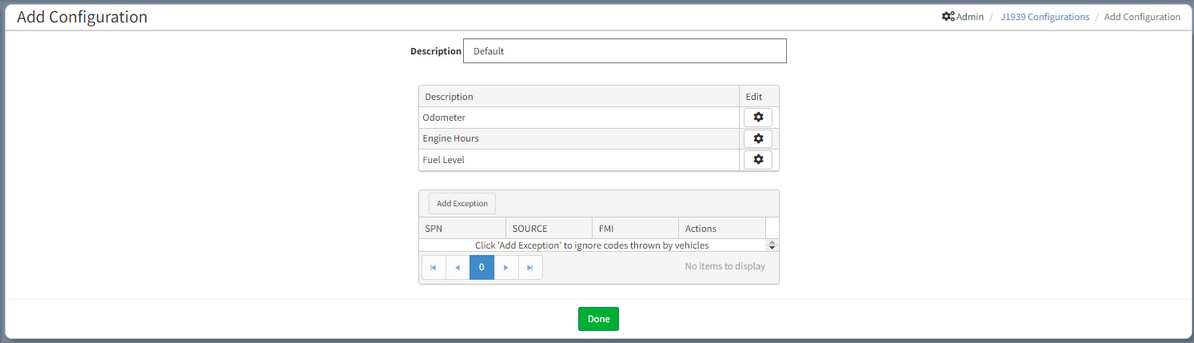

Add J1939 Configuration



Click +Add J1939 Configuration to open the Add Configuration window. Enter the name of the new configuration in the Description box.









The screen consists of the following fields:



Descriptor – The category assigned for the Index on the list (i.e. Odometer).

Edit – Click to open the Edit Descriptor.



Click the Done button to return to the initial J1939 Configuration window.



Note: From either the Edit Configuration window or the Add Configuration window, click the Edit icon to open the Edit Descriptor window where an individual Descriptor setting can be configured. If editing from Add Configuration, a Descriptor must be selected before the Edit Descriptor function becomes active.

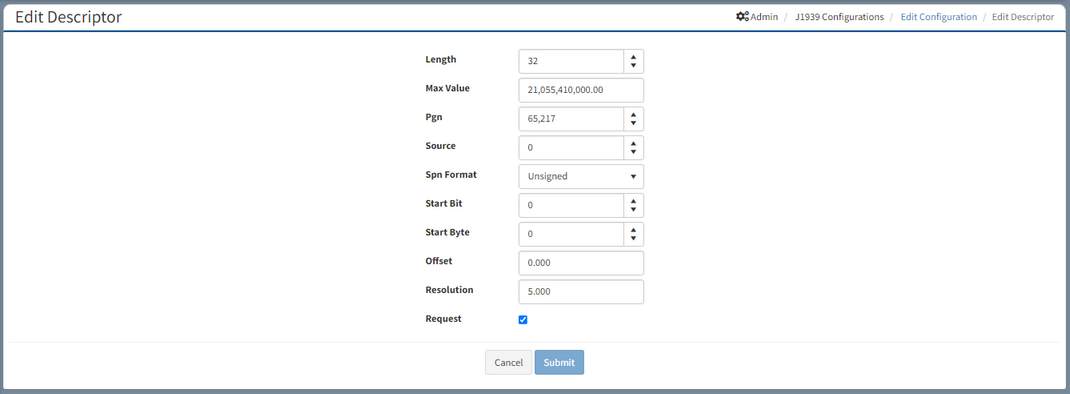

Edit Descriptor

From the Edit Descriptor window the user is able to set the values of the Descriptor field. If the Request check box is selected the DVR requests the data. If the box remains in the default setting of unchecked, the DVR only listens for broadcast data.







Click Submit to apply configuration settings. Click Cancel to clear settings and end Descriptor configuration.

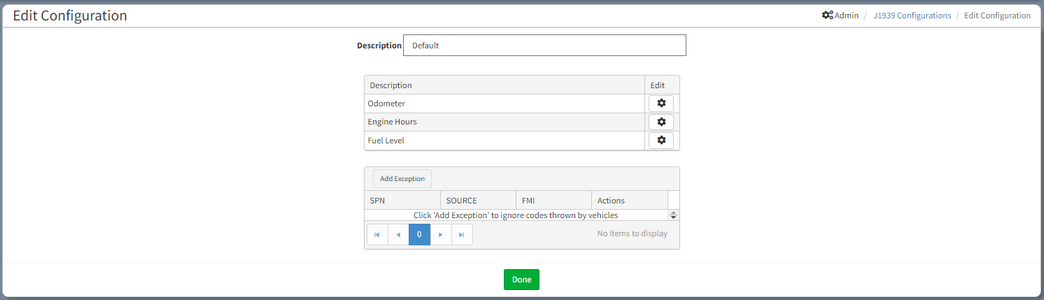

Edit Configuration



From the Edit Configuration window the settings for each Descriptor category can be selected and edited.











Click the Edit buttonnext to each descriptor to open the configuration window for each descriptor in the same method as the other J1939 descriptors.



Add Exception



Add an Exception when there is a need to ignore a unique and non-essential SPN/SOURCE/FMI codes from a vehicle.  The numbers in the SPN/FMI/SOURCE columns denote J1939-defined values to show what J1939 input to ignore. For example, a SPN (Suspect Parameter Number) of 110 is fault code for a Caterpillar-specific J1939 Descriptor value (Engine Coolant Temperature).



SPN: Suspect Parameter Number that identifies the parameter sending the fault code error message.



FMI: Failure Mode Identifier that is used to identify the type of fault detected.



SOURCE: Source Address identifying the Electronic Control Unit that is sending the Diagnostic Trouble Code.

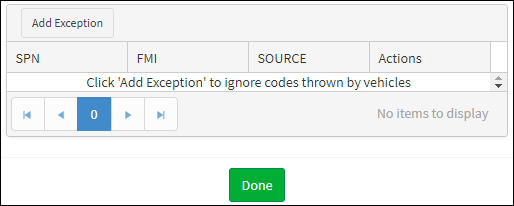

From the Edit Configuration view, click Add Exception to add a row to the Exception Dialog Box. Click Add Exception again to add more rows. The selections are saved automatically. Click Done after completing the entries.

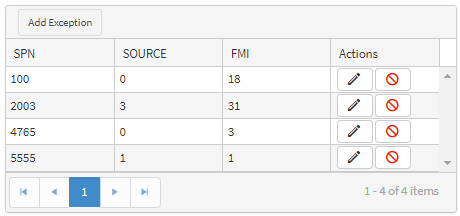

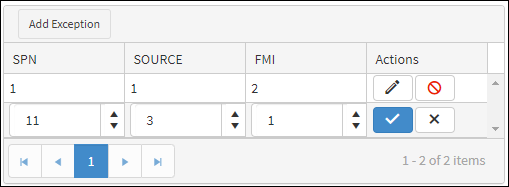

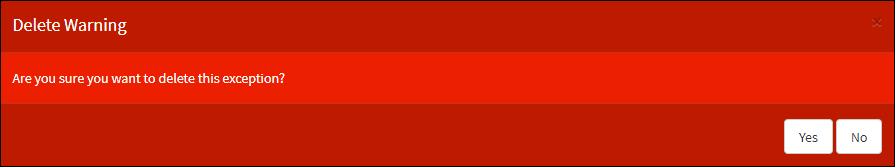

From the Actions column click to enable the user to increase/decrease the number that identifies the user-defined J1939 exception to be ignored. Click to cancel.  Click to delete the exception. Clickto cancel the deletion. A confirmation message prompts the user to continue.







Click Yes to continue. Click No to cancel the deletion.
