An Event Search can be utilized to locate specific inputs and events for a specific vehicle or for all vehicles. It allows custom searches to suit user criteria.

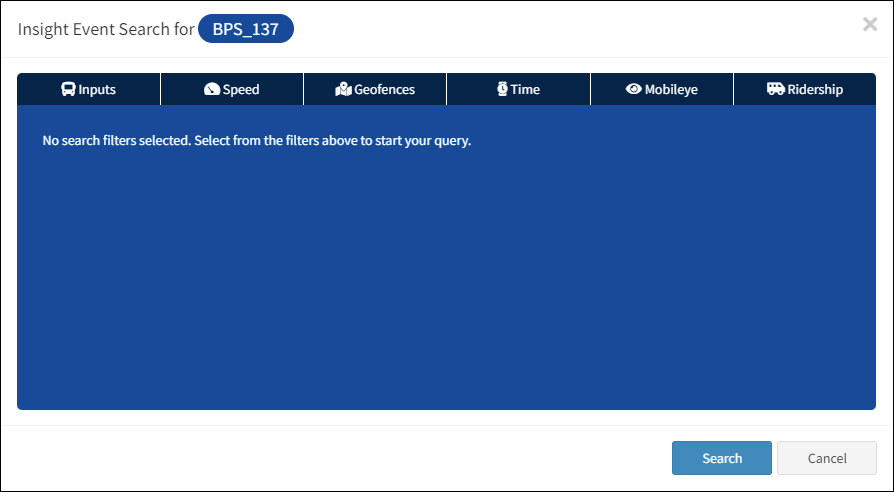

Click the Event Search button to open the Insight Event Search Dialog Box for the subject vehicle (i.e., BPS_137).





A search can be queried for a specific vehicle or All Vehicles selected in the All Vehicles drop-down. Select the criteria for the new search within the Inputs, Speed, Geofences, Time, Mobileye (where applicable), and Ridership dialog boxes.

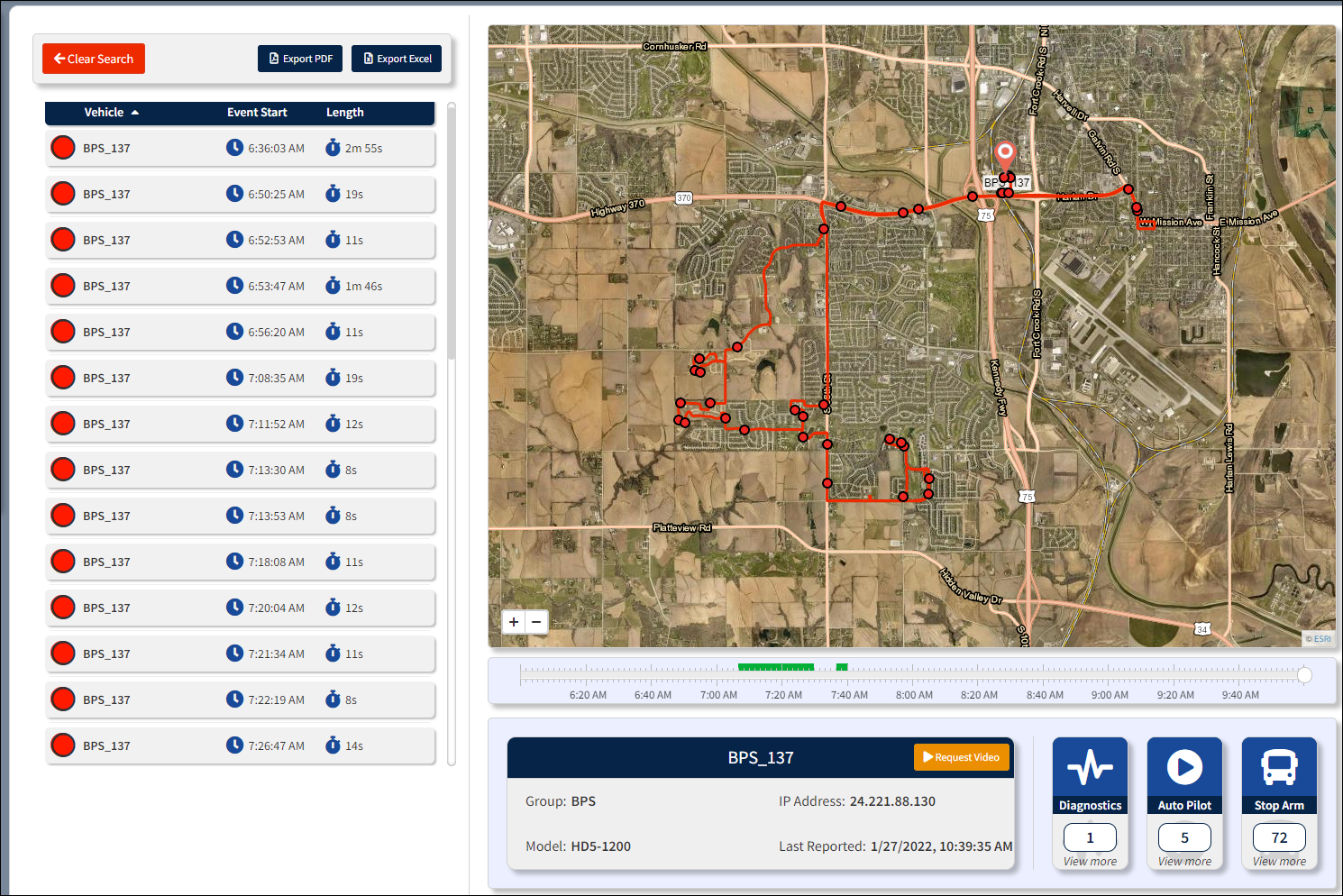

When the search criteria selections have been made click Search to execute the search. Click Cancel to suspend the search. Once the search is complete, the search results are displayed on the right side of the map with each event occurrence identified on the map.

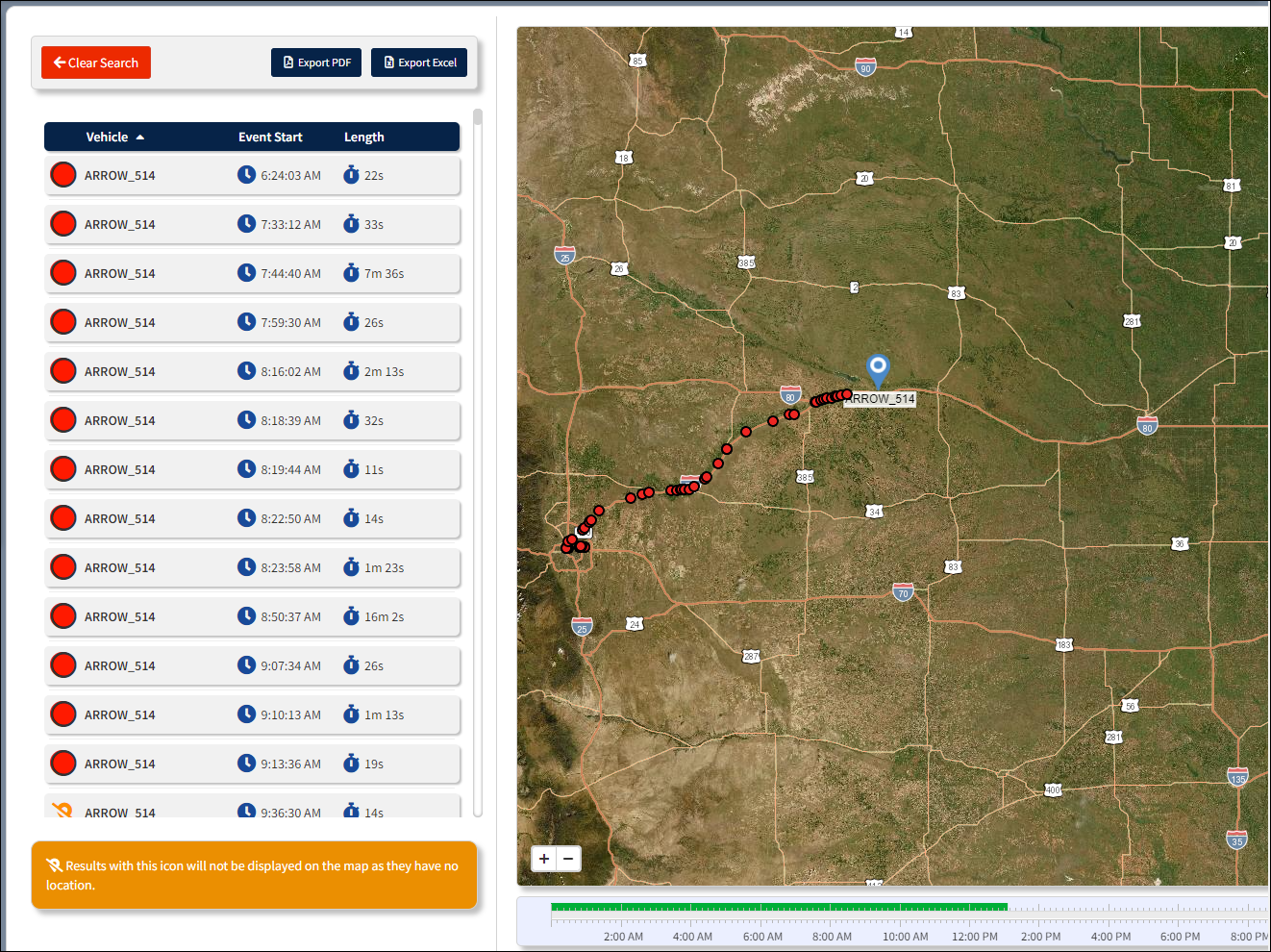

No Location Warning

When there is no location for one of the events, nothing will display on the map for that event. It is identified on the vehicle list with a No Location icon and a warning message.



The location identified as a No Location will not be displayed on the map.





Select a vehicle from the list (i.e., BPS_137),  and information related to the selected vehicle is displayed on the window.

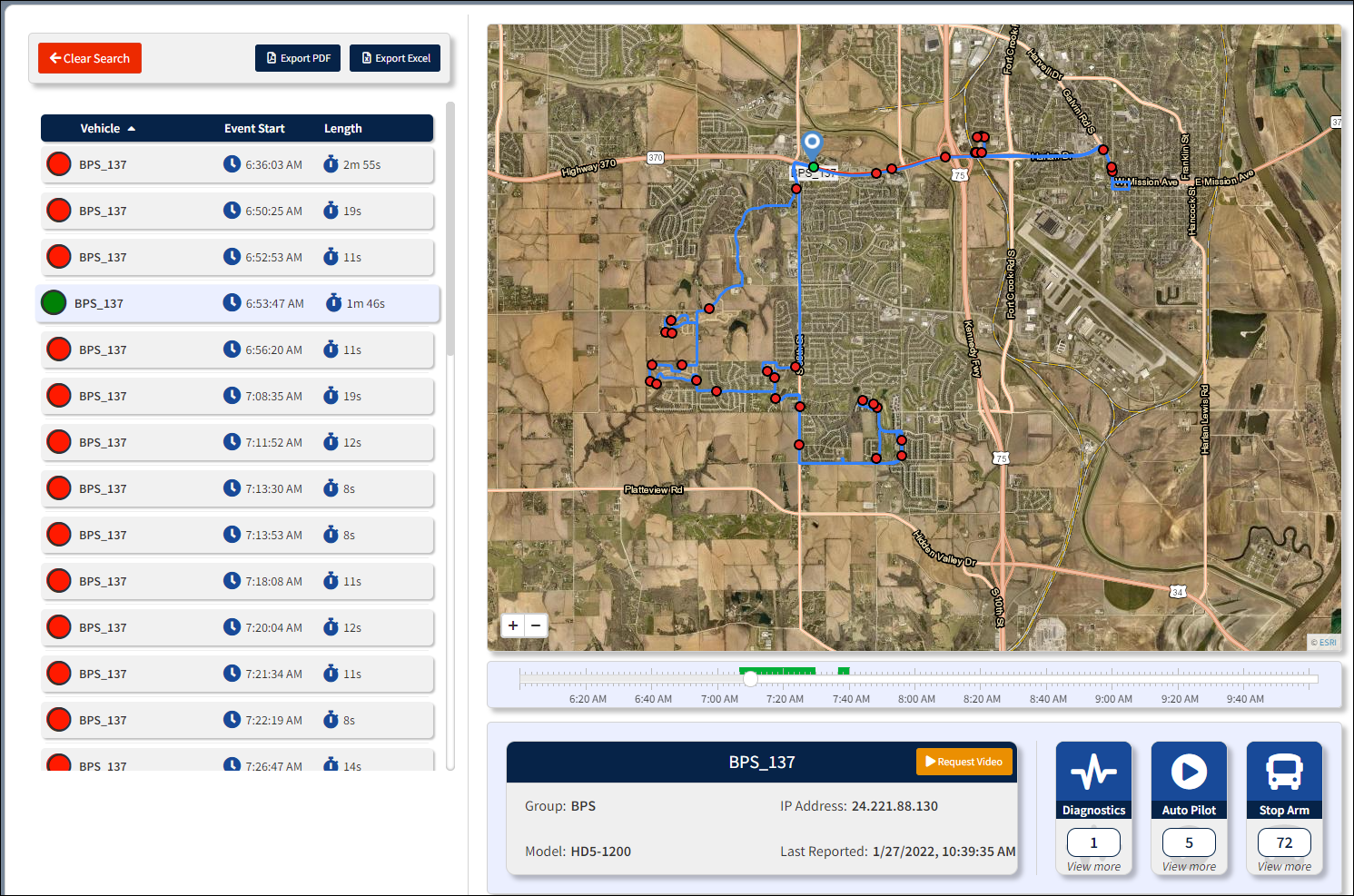

Individual events for the selected vehicle can be searched by clicking on an event listed on the table. The selected event is marked on the map with a vehicle marker and the corresponding map markers representing each event on the table, turn from red to green.

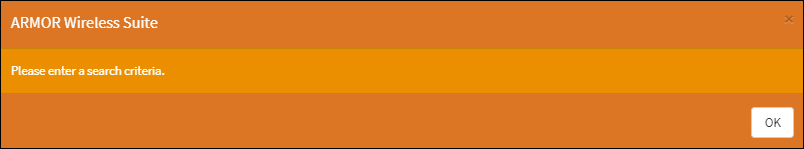

If a search is executed without any search criteria entered, a message will appear prompting the user to enter search criteria.  Click OK and repeat the search process.









Search criteria is determined by making selections in the following drop-down boxes within the Search Type For All Vehicles window.



Inputs menu includes the following categories that can be part of vehicle search criteria.







Inputs – Drop-down includes the following in the table below:











Events – Drop-down includes the following significant events.











J1939 – Click Select Descriptors to set up vehicle events to be listed on the Search Type Report.







Note: The list of J1939 selections that appear on the table below reflect from the J1939 search options made under J1939 Configurations in Administration.







Accel (Total) – Vehicle Acceleration.





Driver Events – When the driver presses the Event button on the Driver App.





Search boundaries or parameters of measured vehicle speed.







Above – Above the specified speed, measured in mph

Below – Below specified speed, measured in mph

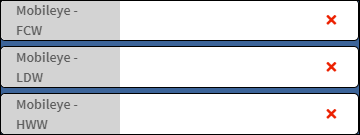

Mobileye – When the Mobileye check box is selected in the Groups window, the dialog box supporting the Mobileye Driver assistance system appears in the Search Type menu.



Note: Mobileye only appears in the Search menu when the selected vehicle is in a vehicle group that has Mobileye enabled.





Speeding – Speed Warning measured in 5 mph increments.





Headway – Distance between vehicle measured in seconds.





FCW – Forward Collision Warning

LDW – Lane Departure Warning

HWW – Headway Warning





Search a geographical area that encompasses the route for a specific vehicle or fleet of vehicles.





Inside – Events occur within the specified geofences.





Outside – Events occur outside of the specified geofences.

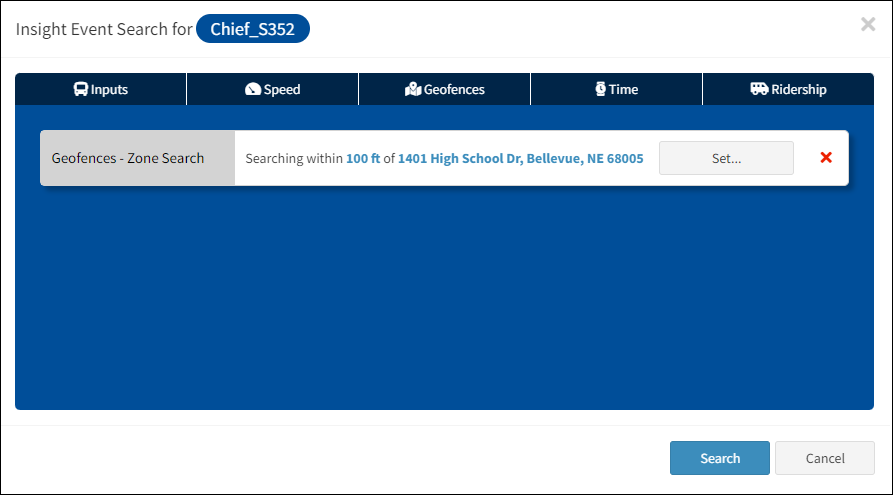

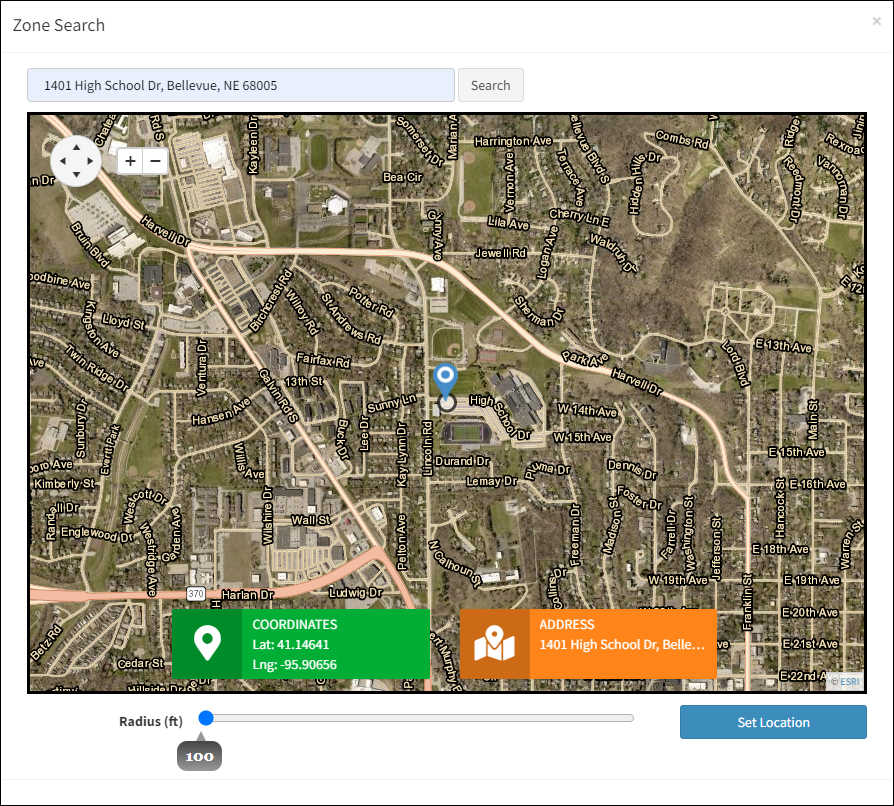

Zone Search – Enables the user to create a temporary geofence zone without an administrator. Click on Zone Search to open the Zone Search map. Click on the map to initiate the starting point of the geofence zone. It is possible to enter the address of where the zone will be deployed in the Find address... text box.







Click Search to pinpoint the zone location on the map. Expand or contract the circular radius of the geofence zone, measured in feet, by clicking and dragging the Radius bar on the bottom of the map. Click Set Location to save the zone.





Use the arrows on the Directional wheel to move on the map up and down or left to right. The view can be expanded (+) or contracted (-) using the Zoom in/out buttons.



Latitude – The coordinates of the zone measured in latitude.



Longitude – The coordinates of the zone measured in longitude.



Radius (ft) – The amount of area the zone encompasses. Measured in feet, the radius can be adjusted by clicking and dragging the bar on the bottom of the window. The amount of feet of the radius is displayed below the bar.



Search for restriction of results based on time of day and/or length of events.







At Least – Only return events that are of an equal or greater length, measured in minutes and seconds.







Between – Specify events that range between two times during the day.





Once the search parameters have been entered, click Submit to commence the Search.



Click to cancel the search.



Use Ridership to identify the driver who was operating the vehicle subject to the timeframe of the search.







Driven By – Select a driver from the drop-down.







Student On Board – Select the names of the students on board the vehicle during the timeframe of the search.

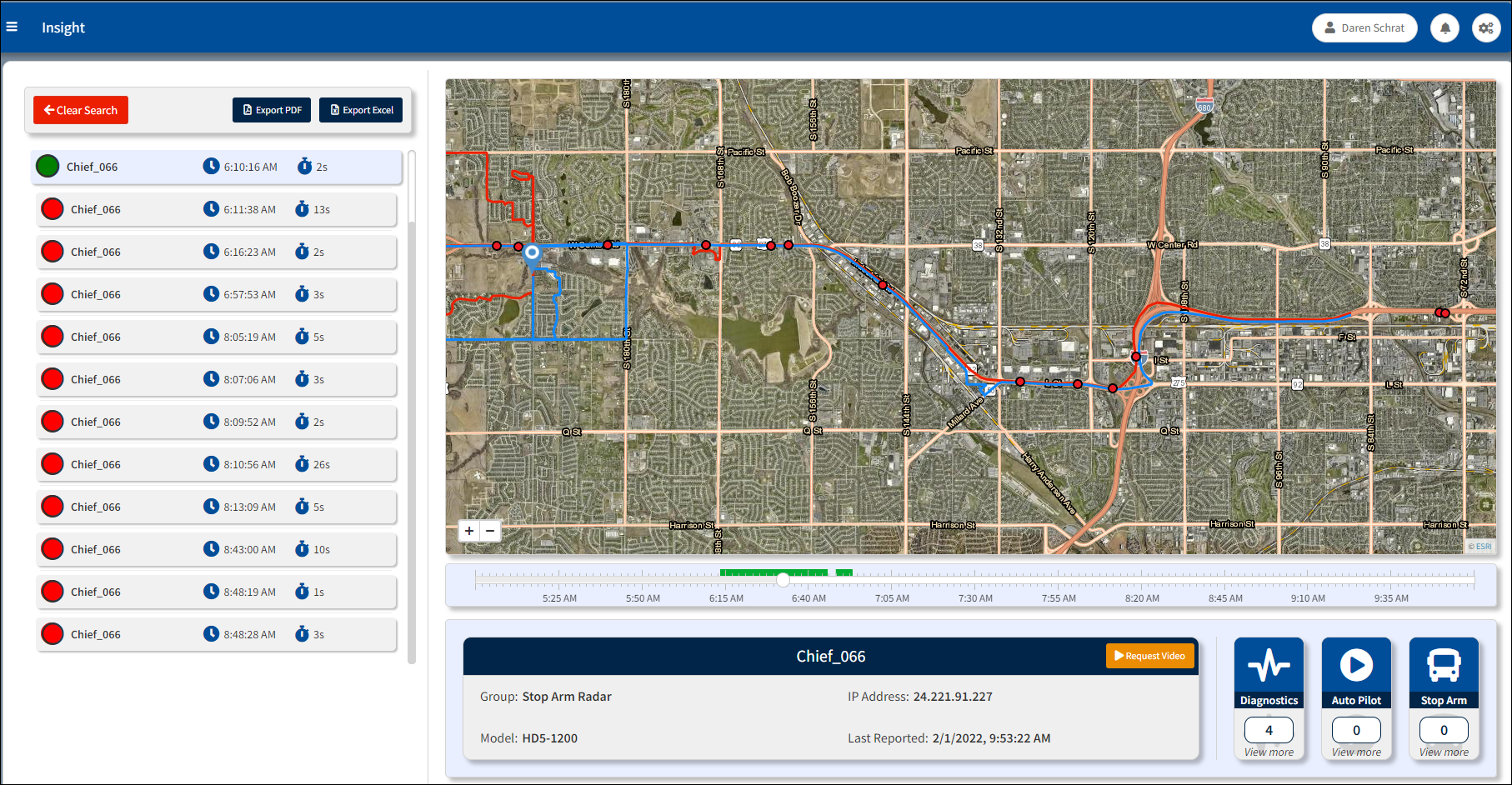

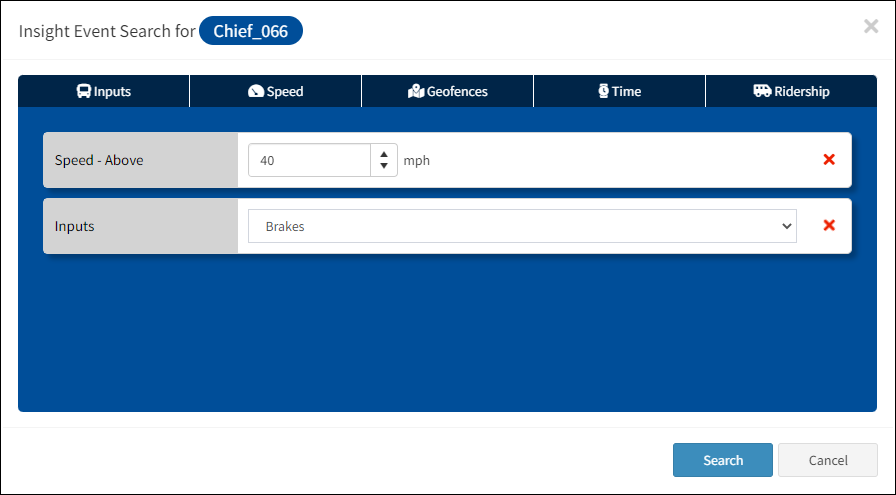

Sample Search Output



The sample search output below is listed for an individual vehicle (i.e. Chief_066). The settings listing for the Search Type For Chief_066:



▪Inputs (Brakes)

▪Speed (Above 40 mph)

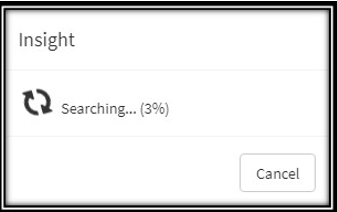

If the search is lengthy, a window appears to provide feedback of how the search is progressing.







If no search results are found, the Search Results page will be empty.





Click the Clear Search button to close the Search window.



Search Results:

▪The red dots on the map indicate where every event occurred.

▪The blue outline indicates the portion of the route remaining to be traveled.

▪The red outline indicates where the vehicle has already traveled on its route.

▪The single green dot indicates the selected event.

▪The clock icon represents the time when the event occurred. The time is listed next to the icon.

▪The stop watch icon represents the duration of the event. The length of time of the event is listed next to the icon.









Create a Report

To generate a report in either PDF or Excel format, click Export PDF or Export Excel in the top of the Results tab.  The results can be cleared by selecting Clear Search Results. The report will be downloaded to the downloads folder of the browser. The report contains the vehicle identity, date of the event, and the length of time for each occurrence of the Search Type as depicted on the map.

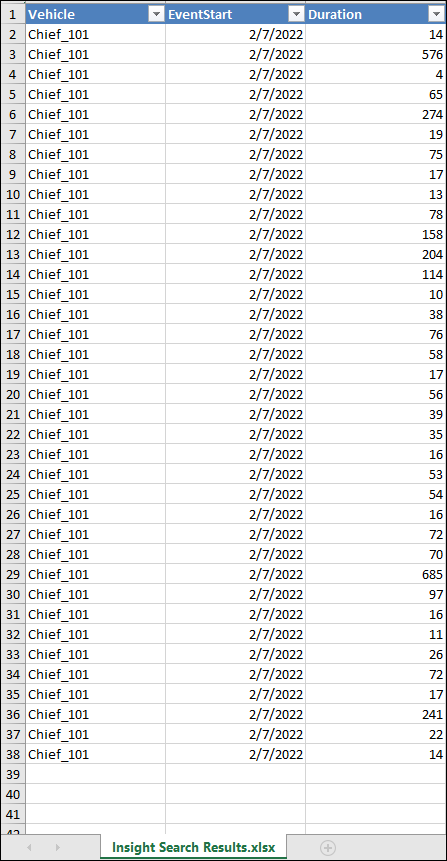

Sample Insight Search Results Report in Excel

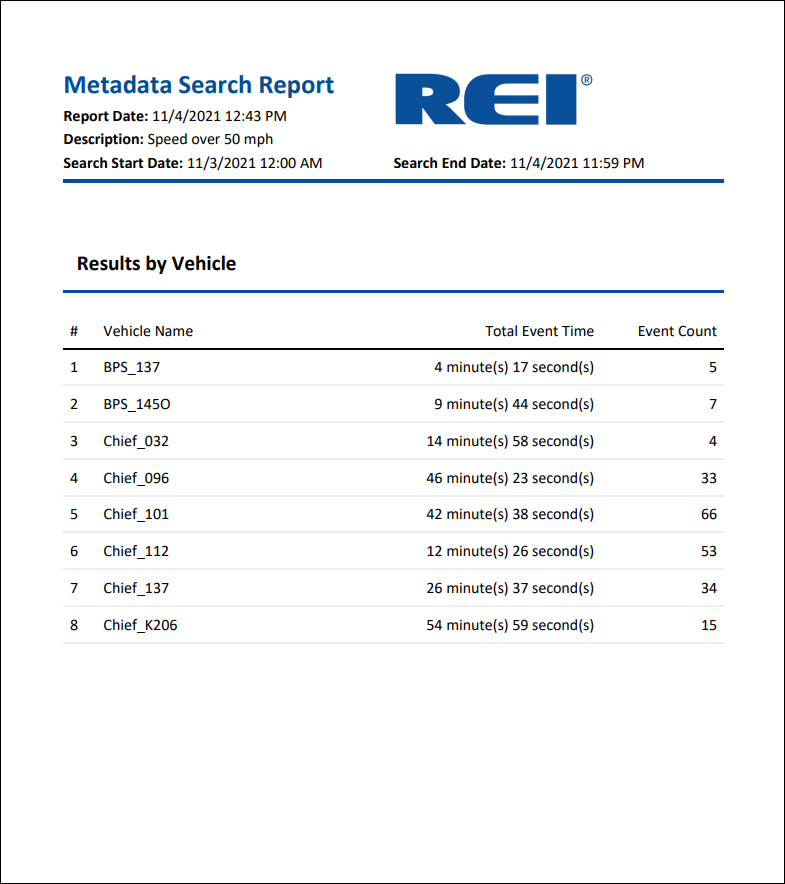

Sample Insight Search Results Report in PDF format









+
